| MOQ: | 1 مجموعة |
| السعر: | 0-400 USD |
| standard packaging: | حماية الحزمة مع الكرتون |
| Delivery period: | 3 أيام عمل |
| payment method: | بواسطة تي / تي، ويسترن يونيون |
| Supply Capacity: | 0-5000 مجموعة / شهر |

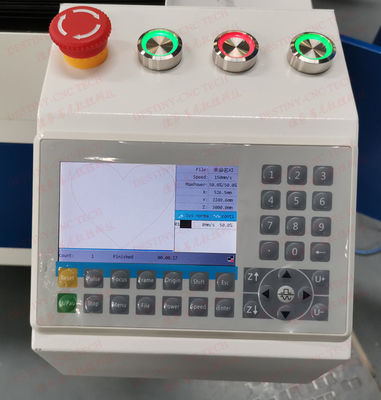

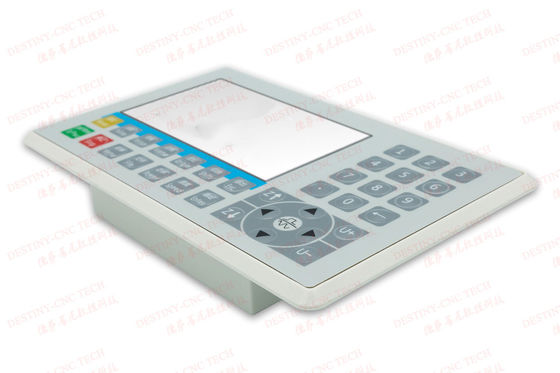

RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect.

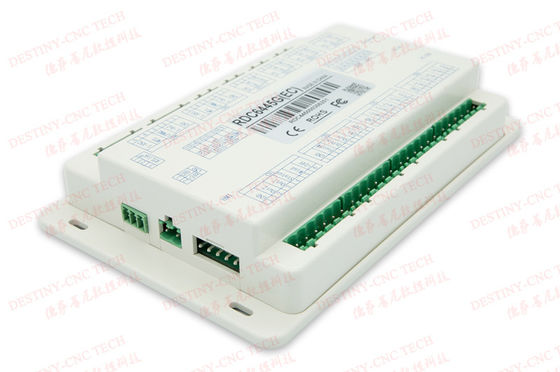

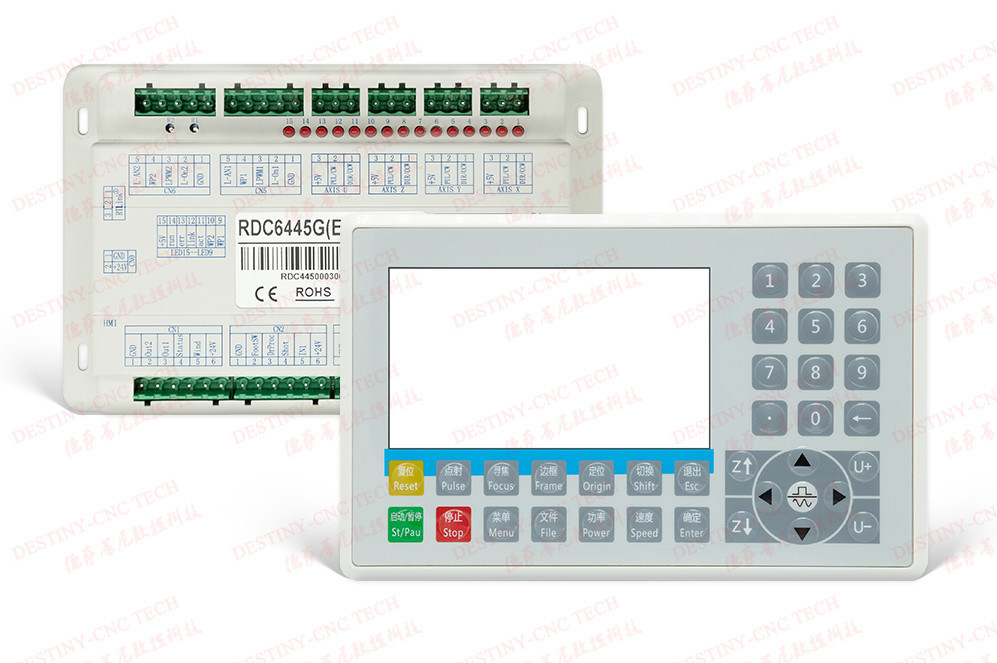

RDC6445G controller
Technical Parameters:
1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;
2. On-board 128M non-releasable memory;
3. USB maximum transfer rate is 12M, the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can directly drive 24V / 5V DC relays
7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;
Function description:
1. Support up to 4 servo / stepper motor control;
2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;
3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;
4. Support mobile APP;
5. Support dual-head electric mutual shift control and super-format split cutting processing;
6. Support dual-head asynchronous processing;
7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;
Whatsapp: 0086-18769963716 Skype: destinytrading Contacts : Legend Wu / Sales Director
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
|
|
