| MOQ: | 1 مجموعة |
| السعر: | 0-140000USD |
| standard packaging: | حالة خشبية القياسية CE |
| Delivery period: | 40 أيام العمل |
| payment method: | T / T مقدما |
| Supply Capacity: | 200 مجموعة / شهر |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

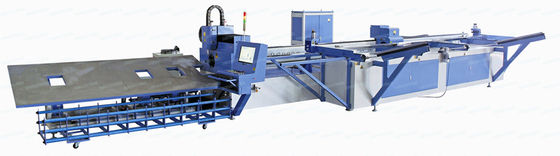

DT- 6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine
DT-6000/8000 is independently researched, this machine can auto-loading, auto-feeding and auto-cutting; it also can automatically collecting and the finished cutting tube and waste. Machine is equipped with intersecting curve cutting and arbitrary angle bevel cutting function; it is mainly used for cutting pipe, tube and oval tube. Its characteristic is high-efficiency and high-precision. Suitable industry like: sport equipment, tube industry, medical equipment, etc.
Parameters
|
Machine Model |
DT-6000/8000 500W |
|
Max. cutting length |
6000mm/8000mm(236 inch / 315 inch) |
|
Laser power |
500W Raycus or IPG brand fiber laser device |
|
laser head |
Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically |
|
Cutting thickness |
0.2-5mm stainless steel / 0.2-6mm carbon steel |
|
Cooling system |
CW-6100 or Sunrise water cooling chiller |
|
Rated power |
10-100% |
|
Machine power |
10KW |
|
Laser wavelength |
1080nm |
|
X,Y-axis location accuracy |
±0.01mm |
|
X,Y-axis repeat location accuracy |
±0.01mm |
|
X,Y-axis fast moving speed |
30m/min |
|
X,Y-axis max cutting speed |
20m/min |
|
Min. cutting line width |
0.02 |
|
Max. cutting thickness |
Stainless steel 3-5mm Carbon steel 4-6 mm |
|
Max. cutting speed |
12m/ min |
|
After-sale service |
Technician available for training and installation |
Machine Configurtaions
|
Terms |
Model |
Parts |
Amount |
Brand or details |
|
1 |
DT-FIBER 500W |
Machine body |
1 set |
DESTINY-TECH |
|
2 |
Fiber laser device |
1 set |
China Raycus or Germany IPG |
|
|
3 |
Laser head |
1 set |
Bochu or Lasermech laser head |
|
|
4 |
Water chiller |
1 set |
Sunrise 1 P or CW 6100 |
|
|
5 |
Servo motor |
3 sets |
Panasonic |
|
|
6 |
Control system |
1 set |
Bochu (Cypcut) system |
|
|
7 |
Auto pipe feeding system |
1 set |
DT-TECH |
|
|
8 |
Valid pipe working length |
6000mm 8000mm |
Working length optional |
|
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
|
|
