| مكان المنشأ: | مدينة ليني، الصين |
| اسم العلامة التجارية: | DESTINY-TECH |
| إصدار الشهادات: | CE certificate 2 yeas warranty |
| رقم الموديل: | دي تي-1318 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | 0-9000 USD |
| تفاصيل التغليف: | حالة خشبية القياسية CE |
| وقت التسليم: | 10 يوم عمل |
| شروط الدفع: | T / T مقدما |
| القدرة على العرض: | 500 مجموعة / شهر |
| نوع الليزر: | أنبوب ليزر ثاني أكسيد الكربون مختوم | نوع التبريد: | نظام تبريد مبرد الماء |
|---|---|---|---|
| قوة الليزر: | 60 واط، 80 واط، 100 واط | منطقة العمل: | 1300 مم * 1800 مم |
| مُنفّس: | مضخة هواء | نظام الغاز: | مروحة العادم وأنبوب الهواء |
| المواد القابلة للتطبيق: | الرخام والجرانيت والزجاج والحجر والخشب والخشب الرقائقي، ويمول، والنسيج، والجلود الخ. |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

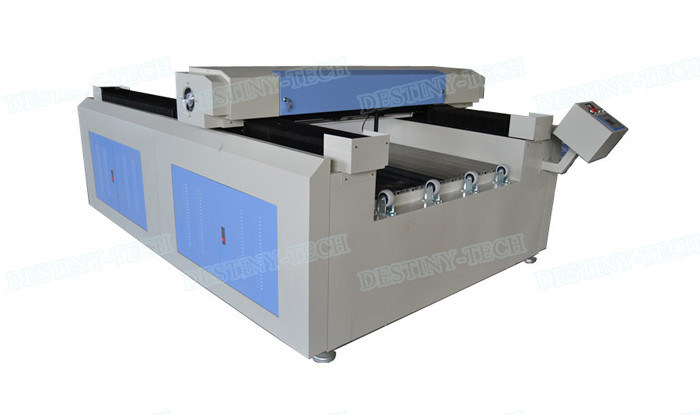

DT-1318 download CO2 Laser engraving machine for marble stone
Machine parameters
|
Machine Model |
DT-1318 download |
|
Working Size |
1300*1800 mm / 51.2 in * 70.8 in ( X * Y axis) |
|
Laser Power |
80w/100w |
|
Laser Type |
Sealed CO2 glass laser tube, water-cooling ,10.6nm |
|
Driving System |
3-Phase Stepper Motor &Belts transmission |
|
Cutting Speed |
0-40000mm/min (1575inch/min) |
|
Engraving Speed |
0-70000mm/min (2756 inch/min) |
|
Laser Output Control |
1-100% software setting |
|
Resetting Position Accuracy |
≤±0.01 |
|
Smallest Character |
Chinese 2.0 *2.0mm English 1.0*1.0mm |
|
Highest Scanning precision |
2500 DPI |
|
Power Supply |
220V/50Hz, 110V/60Hz, |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
5-95% |
|
Operating System |
DSP CNC Control System in Win XP, Win 7 |
|
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
|
Software Supported |
Corel draw, Photoshop, AutoCAD, Tajima |
|
Optional device |
Rotary device ,Red light pointer |
|
Color separation |
Yes |
Machine descriptions
For enrgaving the big tombstone or other big marble ,granite etc. stones . We made a special laser engraving machine with download flat table and wheels . DT-1318 download laser engraving machine is special for stone engraving processing . Its worktable is download , this can keep the thick marble stone through on the table.For the wheels , you can pull the big marble board into the worktable .That will be easier and fast to put heavy stone . The flat table is made by aluminium alloy board .It can hold up 1.5-2 T heavy material .It also keep the life longer . For tombstone , stone decoration or some stone processing .It's a good choice .
Applicable materials and indusctries
Marble,granite, glass, tiles,tombstone,ceramics ,wood ,plywood, acrylic or other thick materials etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
